Usage Patterns

Fast Dash helps build and deploy Proof of Concept (POC) applications lightning fast while having you, the innovator, write as less UI development code as possible.

This document outlines some common Fast Dash patterns and how you can use these ideas to fastrack your deployment.

Before you begin

Never worry about web app development or deployment before you are comfortable about your main Python functionality and supporting code.

Note

The whole Fast Dash promise is to decrease the time needed for app development after you have written the main Python software, not distracting you from your innovation.

So focus on the main functionality of your code and don't worry about the web app.

After you are comfortable with your Python function ...

1. Setting input components

By setting the correct callback function type hints, their default values, or choosing Dash components, and built-in Fast components, you can display most common UI elements for users to enter their inputs.

Note

If you used the proper Python function type hinting practices, you might not have to make many changes to your code.

Here are some examples:

Input is	Type hint	Default value	Example
Text
Text	str	Any	def my_func(arg1: str)
Single item from a list of fixed items	str	List of allowed text items	def get_gdp(country: str = ["USA", "Canada", "Mexico"])
List of items and users can add their own items	list	Blank	def enter_web_urls(urls: list)
List of items and users must choose from a fixed set of items	list	List of fixed set of items	def enter_web_urls(urls: list = ["google.com", "youtube.com", "facebook.com", "bing.com"])
Numbers
Number	int or float	Blank	def enter_score(score: int) or def enter_score(score: float)
Bounded number	int or float	List of bounds and step size in the format: range(min, max, step)	def enter_score(score: int = range(0, 10)) or def enter_score(score: float = list(np.arange(0, 10, 0.1)))
Images and documents
Image	PIL.Image.Image	Blank or default image (PIL format)	def upload_image(image: PIL.Image.Image)
Any document	Built-in component Upload	Blank	def upload_doc(doc: Upload)
Dates
Single date	datetime.date or datetime.datetime	Blank or default date	def set_date(date: datetime.date = datetime.date(2023, 1, 1))

2. Setting output components

We've seen that we can set the desired input component by choosing a specific combination of input type hints and default values. Setting output components works similar to that.

Reminder

Return type hints in Python are written in the function description following the -> symbol.

For example,

• def my_func(...) -> str indicates that the first return value is a string.
• def my_func(...) -> (str, int) indicates that the first return value is a string and the second return value is an integer.

Here's how to set the desired components using return type hints:

Output is	Type hint	Example
Text	str	def my_func(...) -> str:
Number (treated as text)	int or float	def my_func(...) -> int: or def my_func(...) -> float:
Image	PIL.Image.Image	def my_func(...) -> PIL.Image.Image:
Matplotlib figure	plt.Figure	def my_func(...) -> plt.Figure:
Plotly graph	Built-in component Graph	def my_func(...) -> Graph:
Pandas Dataframe	pd.DataFrame or built-in component Table. Using Table lets you set the pagination page size using Table(page_size=20)	def my_func(...) -> pd.DataFrame: or def my_func(...) -> Table: or def my_func(...) -> Table(page_size=20):
Conversation (chat)	Built-in component Chat. Output must be formatted as a dictionary in the format {"query": query, "response": response}	def my_func(...) -> Chat:

3. Arranging output components

Fast Dash allows customizing the visual arrangement of your output components. The idea is using “mosaics.” Drawing inspiration from Matplotlib’s subplot_mosaic method, Fast Dash lets you craft layouts using an ASCII-esque diagram or a string list.

Each unique letter or string in this mosaic signifies a unique component. This approach is a game-changer, especially when you’re aiming for non-uniform grid layouts.

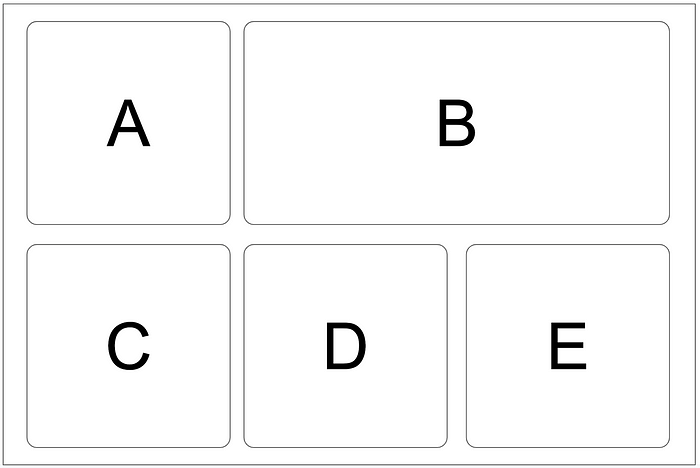

For example, imagine the output arrangement you want is something like in the following image:

In this case, you can define your mosaic to be “ABB \n CDE”. Fast Dash will set the app for five outputs and divide the space into six equally-sized boxes placed as a 2 x 3 grid.

The first output gets the top-left box. The second output stretches across the next two boxes in the top row. And each of the remaining three outputs gets its own box in the row below.

Refer to the examples below to understand this idea better.

Example 1: Two outputs

We have two outputs and we want them to appear one below the other.

mosaic = """
A
B
"""

@fastdash(mosaic=mosaic)
def my_func(arg1: str) -> (str, str):
    return "A", "B"

Output:

Example 2: Three outputs

We have three outputs. The first two should appear next to each other in the first row and the third should appear below them taking up the entire second row.

mosaic = """
AB
CC
"""

@fastdash(mosaic=mosaic)
def my_func(arg1: str) -> (str, str, str):
    return "A", "B", "C"

Output:

Example 3: Four outputs

We have four outputs. The first two should appear one below the other in the first column, and the remaining two should take up the entire second and third columns respectively.

mosaic = """
ACD
BCD
"""

@fastdash(mosaic=mosaic)
def my_func(arg1: str) -> (str, str, str, str):
    return "A", "B", "C", "D"

Output:

Example 4: Five outputs

This example has five outputs. Here are the requirements:

• The 1st output must appear first.
• The 2nd output must be twice as wide as the first output.
• The 3rd, 4th and 5th outputs must be in the second row and have the same width.

mosaic = """
ABB
CDE
"""

@fastdash(mosaic=mosaic)
def my_func(arg1: str) -> (str, str, str, str, str):
    return "A", "B", "C", "D", "E"

Output:

Example 5: Eight outputs

This is a slightly complicated example with 8 outputs, reminiscent of some BI dashboards. Here's what we want:

• The first 4 components appear one after the other horizontally (like overview KPIs in a dashboard).
• The 5th output appears directly below the first 3 components while the 6th appears directly below the 4th.
• The 7th appears directly below 5th and the 8th appears directly below the 6th.
• Let's add a complication intentionally: Components 5 through 8 should be twice as tall (vertically) as the first 4 components.

No problem! it's easy to have this layout with Fast Dash just by writing the appropriate mosaic string, without touching the main Python code.

# Notice that the second and third component rows have been repeated
# to make them appear twice as high as the first component row
mosaic = """
ABCD
EEEF
EEEF
GGGH
GGGH
"""

@fastdash(mosaic=mosaic)
def my_func(arg1: str) -> (str, str, str, str, str, str, str, str):
    return "A", "B", "C", "D", "E", "F", "G", "H"

Output:

4. Selecting other configurations

Finally, customize your app by controlling various options like the theme of the app, social media branding links, subheaders, deployment mode and so on.

In the next section, we'll see what Fast Components are, what separates them from other Dash components, and how we can easily modify Dash components to make them compatible with Fast Dash.
